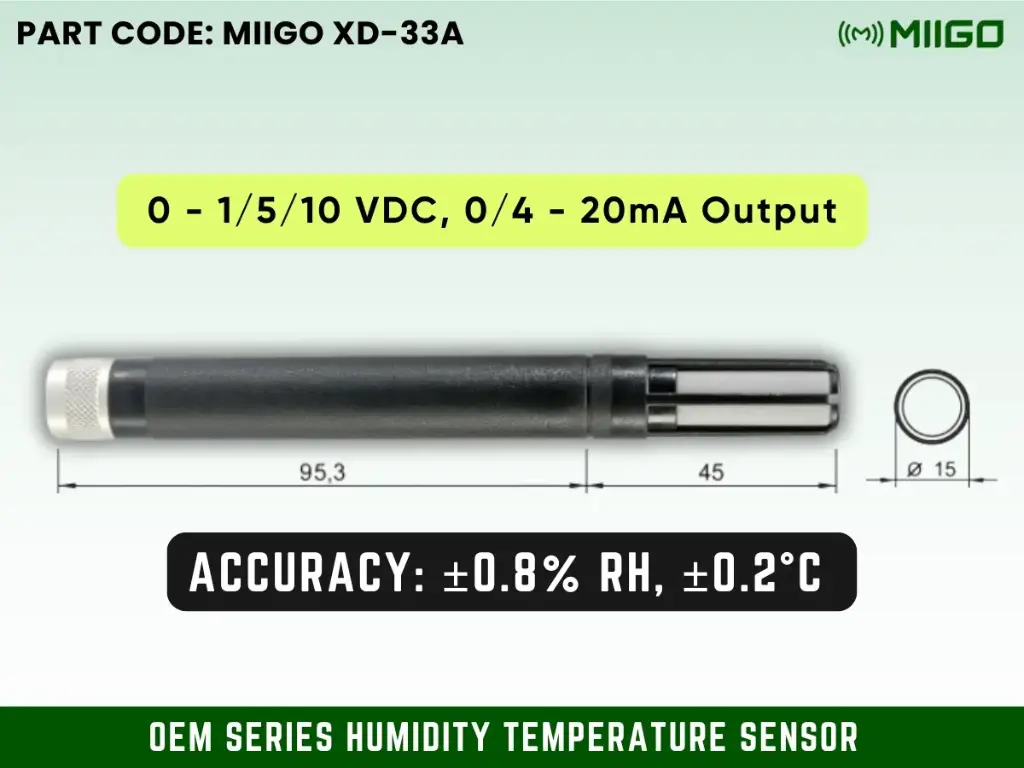

XD-33 OEM Humidity - Temperature Sensor

DESCRIPTION

This high-performance humidity and temperature transmitter features a Rotronic Hygromer 1 sensor for precise relative humidity and ambient temperature measurement. Designed for industrial and commercial applications, it offers excellent accuracy, fast response, and flexible output options including 0–1 VDC, 0–5/10 VDC, or 4–20 mA. The IP65-rated enclosure makes it ideal for HVAC systems, pharmaceutical storage, cleanroom monitoring, and environmental data logging.

TECHNICAL SPECIFICATIONS

• Humidity Sensor:
  • Type: Capacitance type
  • Model: Rotronic Hygromer 1
  • Measurement range: 0 - 100 %RH
  • Accuracy: ± 0.8%RH @ 23 °C
  • Humidity output options:
    • Standard: 0 – 1 VDC
    • Optional: 0 – 5 VDC / 10 VDC / 4–20 mA
• Temperature Sensor:
  • Type: Pt100 RTD (IEC 751 1/3 Class B)
  • Measurement range: -40 to +85 °C
  • Accuracy: ± 0.2 °C @ 23 °C
  • Temperature output options:
    • Standard: 0 – 1 VDC
    • Optional: 0 – 5 VDC / 10 VDC / 4–20 mA
• Power Supply:
  • Voltage options:
    • 5 to 16 VAC / 5 to 24 VDC (for 0–1 VDC output)
    • 12 to 16 VAC / 16 to 24 VDC (for other output types)
• Cable Details:
  • Length: 2 meters (standard)
  • Type: With MOC connector
  • Optional extension: ₹250/meter
• Notes:
  • Custom output and range configurations available on request (0–5/10 VDC or 4–20 mA)
  • Includes standard manufacturer test/calibration certificate
• Protection Rating:
  • IP65-rated enclosure (excluding sensor tip) for durability in harsh environments

APPLICATION AREAS

• HVAC and building automation systems
• Cleanroom and pharmaceutical storage
• Industrial process monitoring
• Weather monitoring and environmental logging
