DESCRIPTION

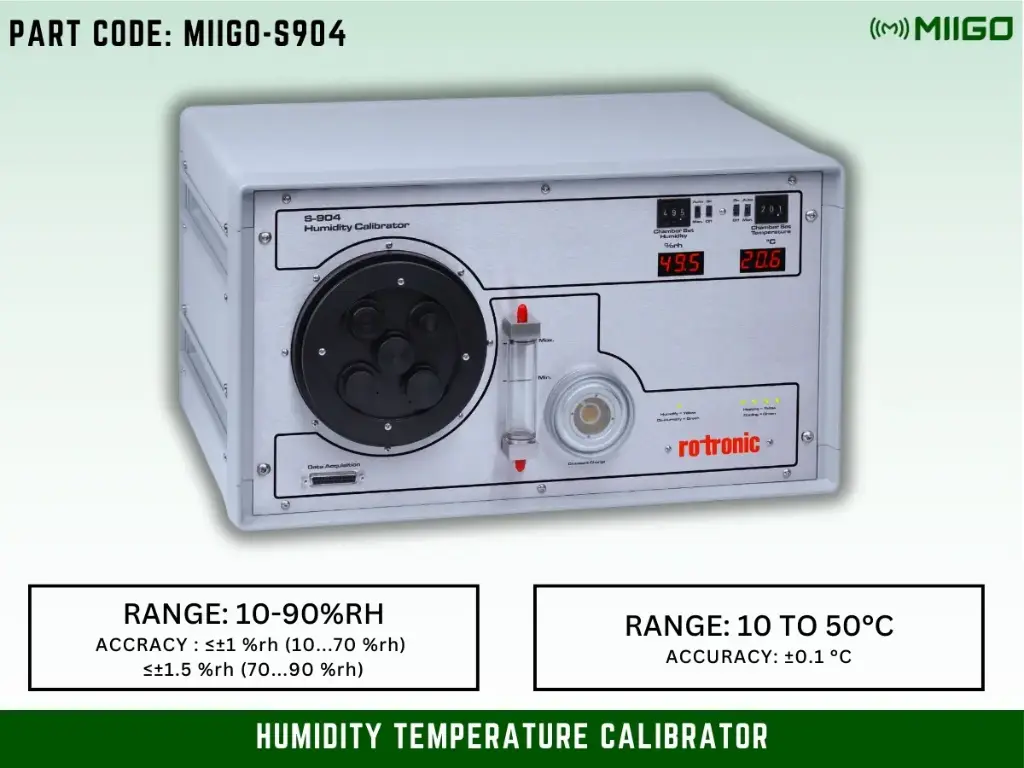

The high-precision humidity and temperature generator chamber is an advanced calibration system designed for accurate %RH and temperature generation in laboratories and industrial settings. Featuring a removable RH sensor, LED display, and high-resolution control, it ensures stable environmental simulation for calibrating sensors and monitoring devices. Ideal for quality control, R&D labs, metrology applications, and calibration facilities.
TECHNICAL SPECIFICATIONS
Humidity control
Temperature control
-
Generated range: 10 to 50 °C (50 to 122 °F)
-
Lowest temperature set point is 10°C below ambient
-
Accuracy: ±0.1 °C (±0.2 °F)
-
Stability: ±0.1 °C (±0.2 °F)
Chamber performance
Ramp rate:
-
From 20 to 40 °C: 1.5 °C/min (2.7 °F/min)
-
From 40 to 20 °C: 0.7 °C/min (1.2 °F/min)
-
Control element: Removable relative humidity sensor
Physical dimensions
-
Chamber volume: 2000 cm³ (122.1 in³)
-
Chamber dimensions (HxWxD): 105 x 105 x 160 mm (4.13 x 4.13 x 6.3”)
-
Instrument dimensions (HxWxD): 290 x 520 x 420 mm (11.4 x 20.5 x 16.5”)
-
Probe ports: Up to 5 sensor bodies (5 to 25 mm diameter) with port adapters
Display & control
-
Set point resolution: 0.1 (for humidity & temperature)
-
Display type: 3-digit LED display with 10 mm (0.39”) character height
Power supply
-
Input voltage: 85 to 264 VAC, 47/63 Hz
-
Power consumption: 150 VA
APPLICATION AREAS
-
Sensor calibration labs
-
Quality control departments
-
Pharmaceutical and medical equipment calibration
