DESCRIPTION

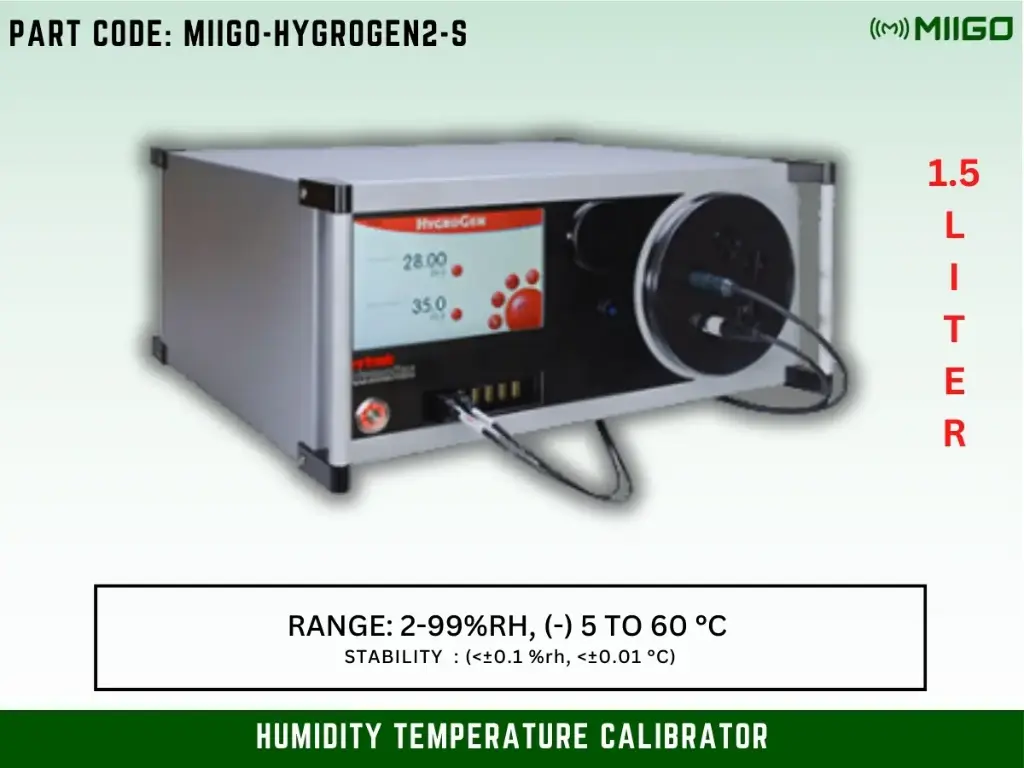

The HYGROGEN2-S (HG2-S) is a compact, high-precision humidity and temperature generator chamber designed for accurate environmental simulation. Ideal for sensor calibration, quality control, pharmaceutical validation, and metrology labs, it offers ±0.1 %RH and ±0.01 °C stability with touchscreen control, programmable features, and USB integration.
TECHNICAL SPECIFICATIONS (HG2-S):
GENERAL SPECIFICATIONS
-
Chamber Volume: 2 Litres
-
Weight: 13 kg
-
Dimensions: 45 x 41 x 21 cm
PERFORMANCE PARAMETERS
-
Humidity Range: 5…95 %RH, Stability: <±0.1 %RH
-
Temperature Range: 0…50 °C, Stability: <±0.01 °C
-
Response Time: <5 minutes (humidity and temperature)
CONTROL & GENERATION SYSTEM
-
Generation Method: Mixed Flow with Desiccant Drier & Piezoelectric Humidifier
-
Temperature Control: Peltier Thermoelectric Element
-
User Interface: Touchscreen
CONTROL PROBE SPECIFICATIONS
-
Sensor Type: HygroClip2 (RH + Pt100 Temperature Sensor)
-
Accuracy: ±1.3 %RH, ±1.8 %RH (higher temp ranges)
PROGRAMMABILITY
-
20 user-defined programs, up to 200 set-point changes
SOFTWARE & CONNECTIVITY
-
Rotronic HW5 Software (FDA 21 CFR Part 11 compliant)
-
USB Ports: 7 Front + 2 Rear
UTILITY & SAFETY FEATURES
-
UV Sterilization, Low/High Water Level Alarms
-
Power Supply: 110...240 VAC
-
Operating Conditions: 10–35 °C, up to 2000 m altitude
