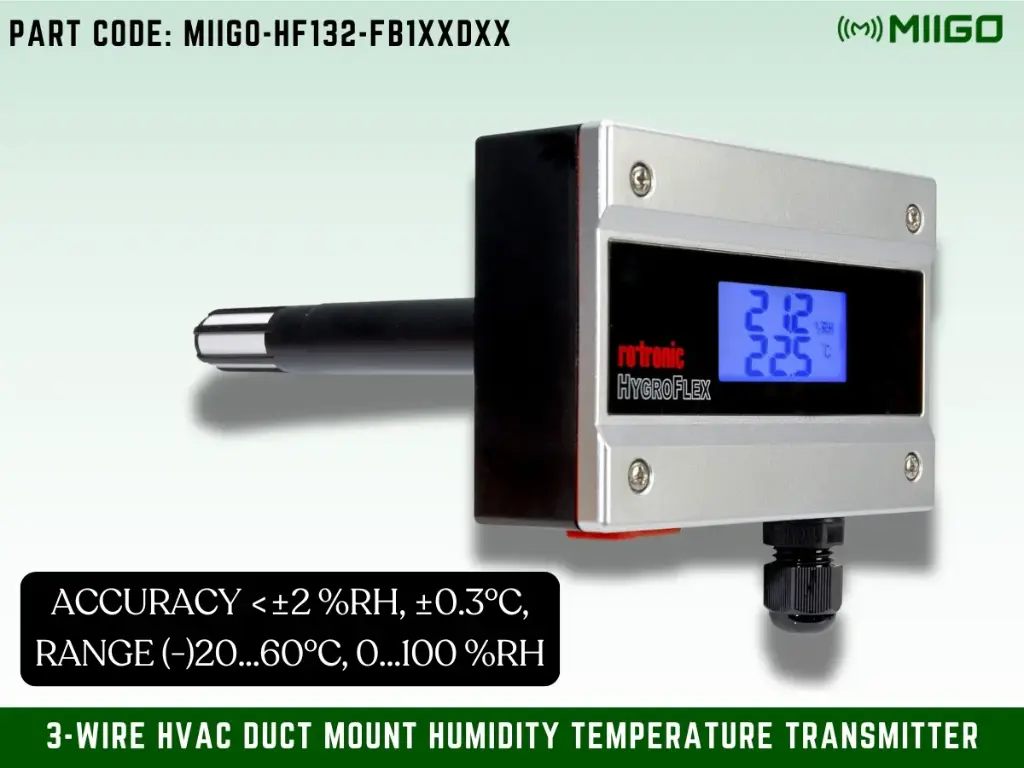

MIIGO - HF132-FB1 Duct Mount Humidity Temperature Transmitter With Display

DESCRIPTION:

The HF132-FB1XXDXX duct mount humidity and temperature transmitter with LCD backlight display is a highly accurate and reliable climate monitoring sensor designed for HVAC systems and industrial applications.

TECHNICAL SPECIFICATIONS:

ACCURACY:

• Humidity Accuracy: ±2 %RH (10...90 %RH)
• Temperature Accuracy: ±0.3 °C

MEASUREMENT RANGE:

• Temperature: -20 to +60 °C
• Humidity: 0 to 100 %RH

PROBE SIZE:

• Duct mount version with 300mm stainless steel probe for optimal air flow measurement

DISPLAY:

• High-visibility LCD display with backlight, ideal for low-light environments

OUTPUT TYPE:

• 4-20mA output, 3-wire configuration for stable signal transmission and easy integration

POWER SUPPLY:

• 10...28 VDC, with max load capacity up to 500 Ω
• Voltage Requirement: 10 V + (0.02 x load)

PROTECTION CLASS:

• IP65 rated housing – protects against dust, moisture, and industrial contaminants

APPLICATION AREAS:

• HVAC systems and duct monitoring
• Building automation and energy management
• Industrial process control and automation
• Cleanroom and laboratory climate control
• Cold chain and storage room monitoring
