DESCRIPTION:

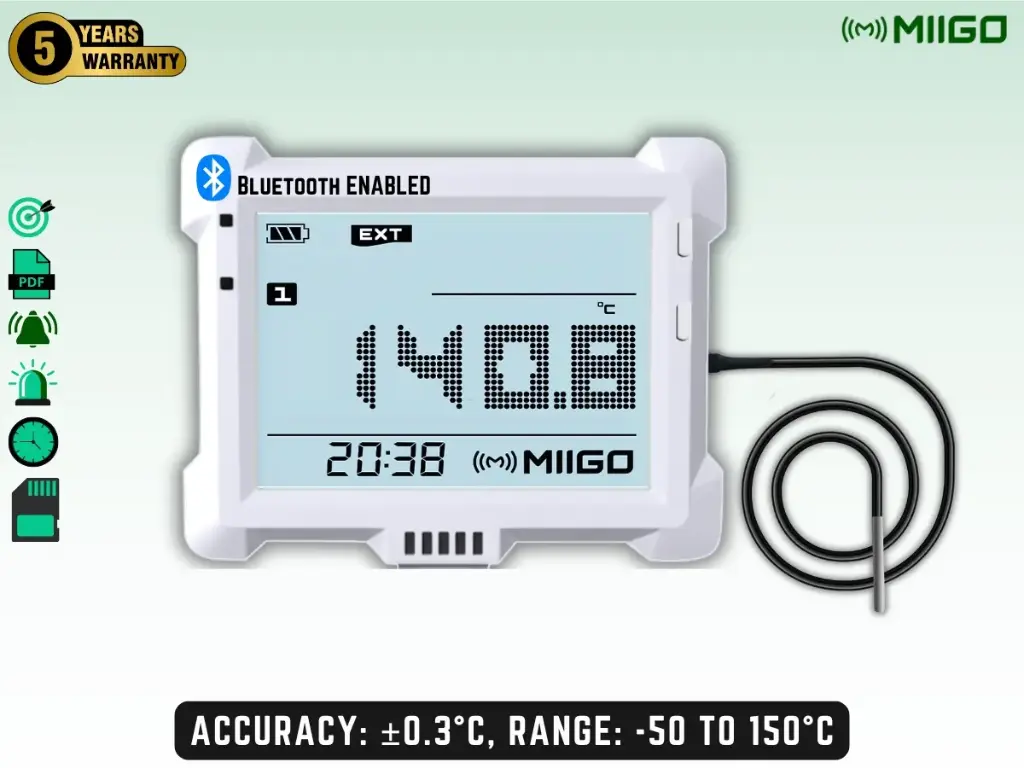

- 1-channel Real-time Online-Offline Programmable Digital Thermometer with external Temperature sensor device comes with
WARRANTY & POST SALES SERVICE:
- 5 years MIIG-WARRANTY
- Replaceable sensor element (If damaged due to harsh application)
- Component-level repair and replacement options increase the ROI for management
ONLINE DEVICE UPGRADATION & REPAIR:
- Dynamic DFU chip in every device helps for online repair & upgradation (saves time + money)
CALIBRATION MANAGEMENT:
- Unique 10-point Drift Correction (complete graph - instead of offset adjustment) and calibration feature
- Calibration DUE DATE reminder
- Non-editable calibration date and value stores feature stops the "FALSE CALIBRATION CERTIFICATE" practice
ACCURACY:
- (EXT)Temperature: Accuracy: ± 0.3 °C, Resolution: 0.01/0.1, Range: -50 to 150 °C
DISPLAY MANAGEMENT:
- 1 Channel External Temperature with date and time
- 51(H) X 66 (W) mm large LCD clear display
- Min-Max-Avg value for all parameters
- The display programming feature helps the user define the working parameters on the display and remove unwanted parameters from the display
- Full-screen LOW BAT - alarm helps users not to forget the replacement battery on time
- The last 15 alarms (FIFO) on the Display itself - for instant alarm function checking
- Each parameter value representation with large to small toggle function for a long-distance viewing experience
- Multiple on-board different types of alarms display help users to take corrective actions
- Data refresh rate 7 sec (optional 2 sec)
ALARM MANAGEMENT:
- 2 pre-alarm + 2 real alarms (each parameter) help the user to take precautions once the pre-alarm rings
- Audible, Visual alarms for each parameter
- Judgement time alarm helps users to define intelligent time functions to avoid false alarms
- Online alarm and battery notification on Mobile Applications, PC Applications
- The last 15 alarms (FIFO) on the Display itself - for instant alarm function checking
MEMORY MANAGEMENT:
- 1 Channel with 40,000 data point memory.
- High-speed Logging interval - 1sec to 24 Hrs
REAL-TIME MONITORING VIA SOFTWARE & MOBILE APPLICATIONS:
- Online-Offline monitoring of current value, alarm, battery level, and data logging status via password-protected
- MIIG-BLUE Mobile application
- BLUE-DESK PC application
- 21 CFR PART II Compliants version (upcoming)
REPORT MANAGEMENT:
- MKT Value in Report with Time Period Selection option
- Standard Tabular Data + Alarm + Graph report in PDF (optional CSV) from Mobile / PC Application
- Single device + up to 50 devices group report from BLUE-DESK PC software
AUDIT SUPPORT TOOL:
- Protection against FALSE CALIBRATION CERTIFICATE practices
- The device, Mobile App and PC - all are password-protected. No unauthorized entry.
- AUDIT-friendly programmable display features help users to select the required display parameters as per the SOP
BULK OPERATION (OPTIONAL):
- BLUE-DOCK is used to program/ report download/ online monitoring of data and alarms for up to 50 devices together
POWERFUL ACCESSORIES:
- Magnetic ring for screwless mounting
- MI-ADOP power adapter supports critical applications with direct 230VAC
