DESCRIPTION:

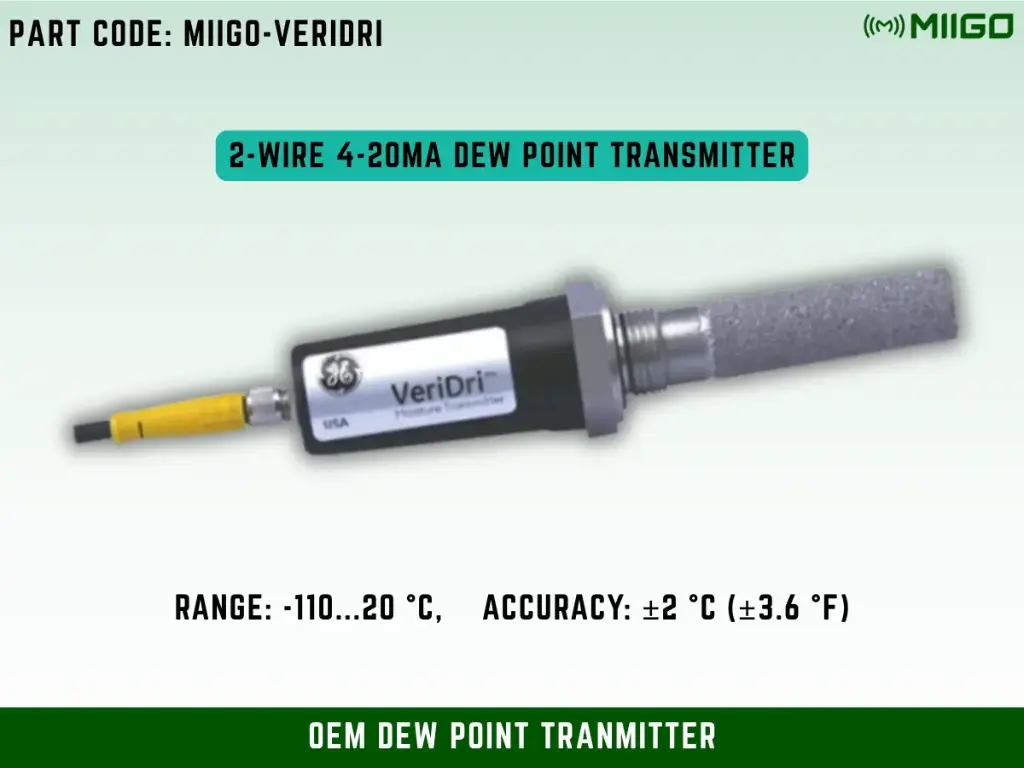

The GE Veridri Dew Point Transmitter is a high-performance, loop-powered moisture sensor designed for accurate and reliable dew point measurement in industrial applications. Engineered with robust construction and IP67 Type 4X protection, this 2-wire dew point transmitter is ideal for harsh environments requiring continuous moisture monitoring in compressed air, gas, and high-pressure systems.
KEY FEATURES & SPECIFICATIONS:
Accuracy:
-
±3.6°F (±2°C) from -65°C to +10°C dew/frost point
-
±3°C from -80°C to -66°C dew/frost point
-
Ensures precise moisture readings across a wide dew point range.
Measurement Range:
-
Dew Point Range: -110°C to +20°Ctd — Suitable for ultra-dry air and gas applications.
Pressure Range:
-
5 μHg to 5000 psig (up to 345 bar) — Designed for vacuum to high-pressure environments.
Power Supply:
-
7 to 28 VDC (Loop-powered) — Compatible with most industrial systems.
Output Signal:
-
4-20 mA (2-wire type) — Industry-standard analog signal for integration with PLC/SCADA systems.
Mechanical Connection:
-
Standard: 3/4 in (19 mm) 16 straight male thread with O-ring
-
Optional: G 1/2 in adapter available — Versatile installation options.
Protection Class:
-
IP67 / Type 4X enclosure — Dustproof and waterproof, suitable for harsh and outdoor conditions.
APPLICATION AREAS:
-
Compressed Air & Gas Dryers
-
Natural Gas Pipelines
-
Industrial Air Systems
-
Power Plants & Utilities
-
Petrochemical Plants
