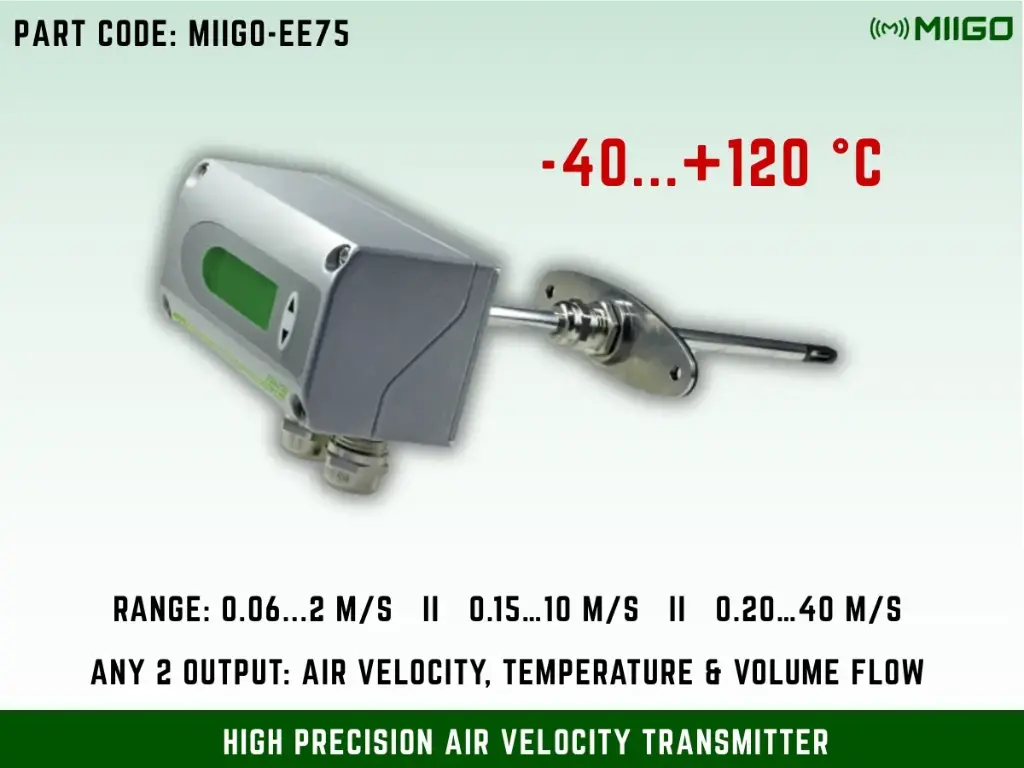

MIIGO - EE75 Industrial Air Velocity Sensor – High Sensitivity & Precision

DESCRIPTION

The EE75 Air Velocity Sensor is a high-end hot-film anemometer, designed for high sensitivity at very low airspeeds and exceptional resistance to pollution. Built for harsh industrial environments, it withstands pressures up to 10 bar (145 psi).

In addition to air velocity and temperature measurement, the EE75 also calculates volumetric flow rate in m³/h or ft³/min, making it ideal for various industrial and HVAC applications. It is compatible with non-flammable and non-corrosive gases, ensuring reliable and precise measurements.

TECHNICAL SPECIFICATIONS

MEASUREMENT PARAMETERS

• Air Velocity Ranges:
  • 0...2 m/s (0...400 ft/min)
  • 0...10 m/s (0...2000 ft/min)
  • 0...40 m/s (0...8000 ft/min)
• Accuracy:
  • 0.06...2 m/s: ±0.03 m/s
  • 0.15...10 m/s: ±(0.1 m/s + 1% of measured value)
  • 0.2...40 m/s: ±(0.2 m/s + 1% of measured value)
• Temperature Measurement Range: -40...120 °C (-40...248°F)
• Temperature Accuracy: ±0.5 °C (±0.9 °F)
• Operating Conditions:
  • Air Velocity: 0...40 m/s (0...8000 ft/min)
  • Temperature: -40...120 °C (-40...248 °F)
  • Pressure-Tight Model: Up to 10 bar

OUTPUT & CONNECTIVITY

• Analog Outputs: Freely scalable in ranges of 0-10V and 0-20mA (e.g., 4-20mA)
• Power Supply: 24V AC/DC

APPLICATION AREAS

• Industrial HVAC & Ventilation Control
• Airflow Measurement in Harsh Environments
• Process Monitoring in High-Pressure Systems
• Volumetric Flow Rate Calculation for Duct Systems
