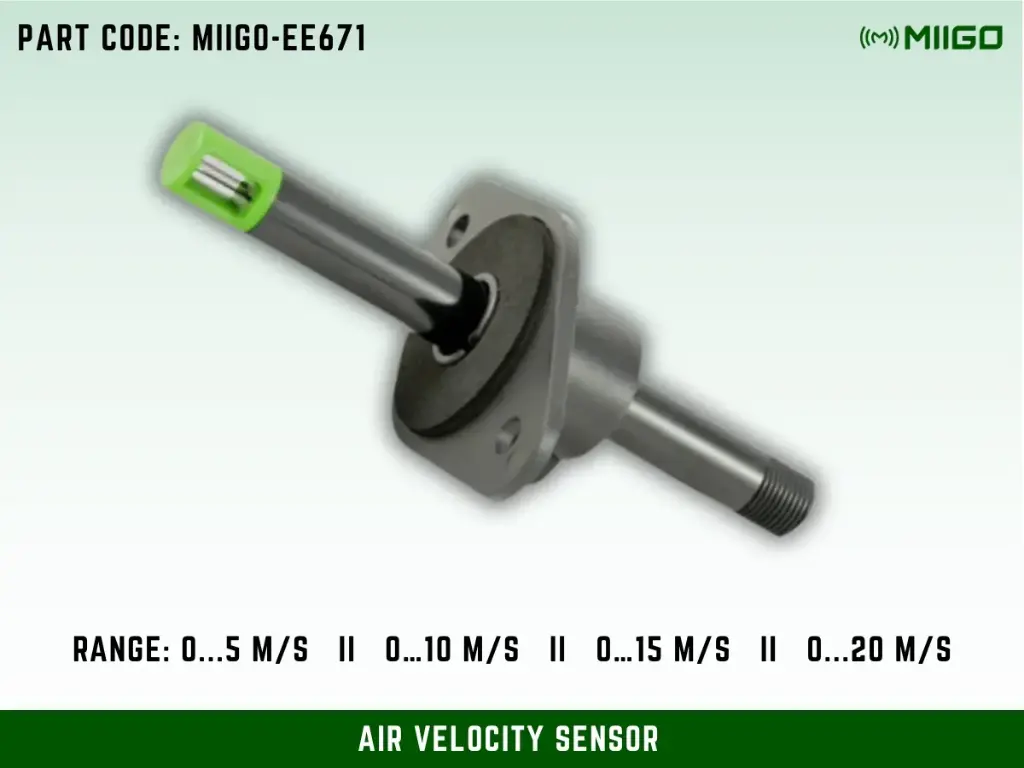

MIIGO - EE671 Compact Air Velocity Sensor – High-Precision HVAC & Process Monitoring

DESCRIPTION

The EE671 Air Velocity Sensor operates on the hot-film anemometer principle, ensuring high accuracy, reproducibility, and long-term stability. Designed for HVAC, industrial flow monitoring, and inlet air measurement, it provides air velocity readings up to 20 m/s (4000 ft/min). The device is available with a fixed cable or plug connection, supporting analog (0-1V, 0-5V, 0-10V) and Modbus RTU outputs. Its alignment nut and mounting flange simplify installation, ensuring precise airflow measurement.

TECHNICAL SPECIFICATIONS

MEASUREMENT PARAMETERS

• Air Velocity Ranges (User Selectable):
  • 0...5 m/s (0...1000 ft/min)
  • 0...10 m/s (0...2000 ft/min)
  • 0...15 m/s (0...3000 ft/min)
  • 0...20 m/s (0...4000 ft/min)
• Accuracy:
  • 0.5...5 m/s: ±(0.2 m/s + 3% of measured value)
  • 1...10 m/s: ±(0.3 m/s + 4% of measured value)
  • 1...15 m/s: ±(0.35 m/s + 5% of measured value)
  • 1...20 m/s: ±(0.4 m/s + 6% of measured value)

OUTPUT & CONNECTIVITY

• Analog Outputs: 0-1V, 0-5V, 0-10V (max. 1mA)
• Digital Output: Modbus RTU (RS485)
• Power Supply: 10-29V DC SELV

APPLICATION AREAS

• HVAC & Ventilation System Monitoring
• Industrial Airflow Measurement & Control
• Oven & Inlet Air Monitoring
• Process Automation & Flow Control
