DESCRIPTION

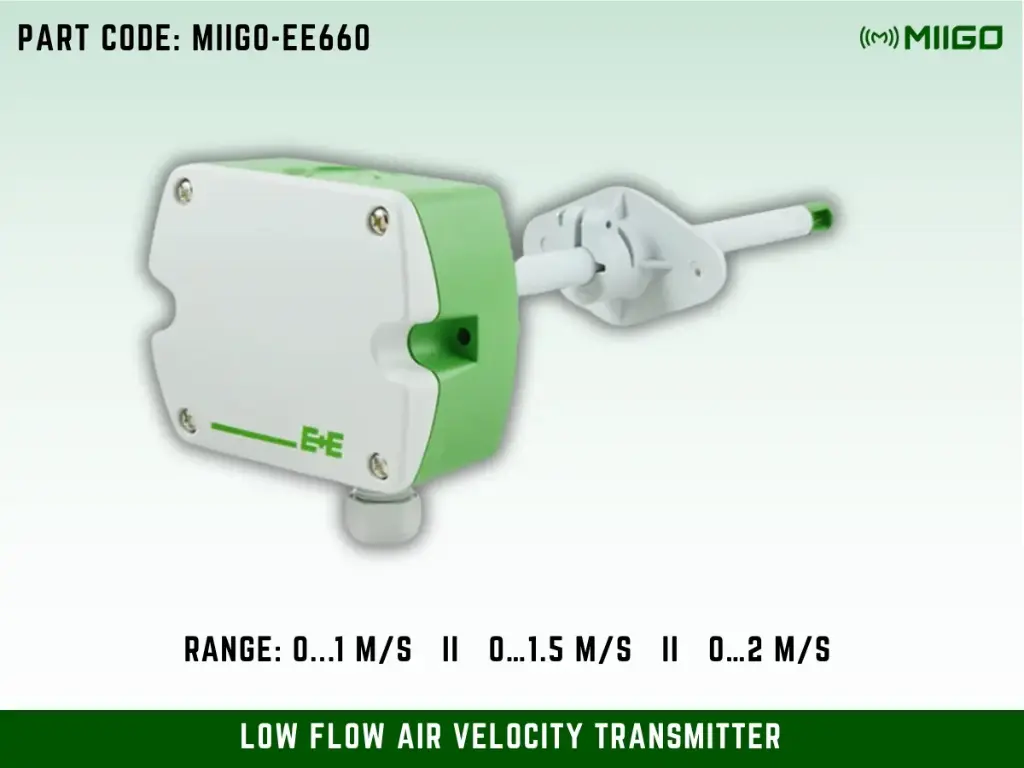

The EE660 Airflow Sensor features advanced thin-film air velocity sensing technology, ensuring high accuracy and stability for low airspeed measurements down to 0.15 m/s (30 ft/min). Designed for HVAC, cleanrooms, and industrial airflow monitoring, it offers user-selectable measuring ranges and multiple output options, including 0-10V, 4-20mA, and Modbus RTU. The device is easily configurable via jumpers or software, making it ideal for precise airflow control applications.
TECHNICAL SPECIFICATIONS
MEASUREMENT PARAMETERS
Air Velocity Ranges (User Selectable):
-
0...1 m/s (0...200 ft/min)
-
0...1.5 m/s (0...300 ft/min)
-
0...2 m/s (0...400 ft/min)
Accuracy at 20 °C (68 °F), 45% RH, 1013 hPa:
-
0.15...1 m/s: ±(0.04 m/s + 2% of measured value)
-
0.15...1.5 m/s: ±(0.05 m/s + 2% of measured value)
-
0.15...2 m/s: ±(0.06 m/s + 2% of measured value)
-
Response Time: User-selectable (typ. 4 sec or typ. 1 sec)
OUTPUT & CONNECTIVITY
-
Analog Outputs: 0-10V and 4-20mA
-
Digital Output: Modbus RTU (RS485)
-
Power Supply: 24V AC/DC
APPLICATION AREAS
-
HVAC & Ventilation System Monitoring
-
Cleanroom & Laboratory Airflow Control
-
Low Air Velocity Measurement
-
Industrial Process Control
