DESCRIPTION

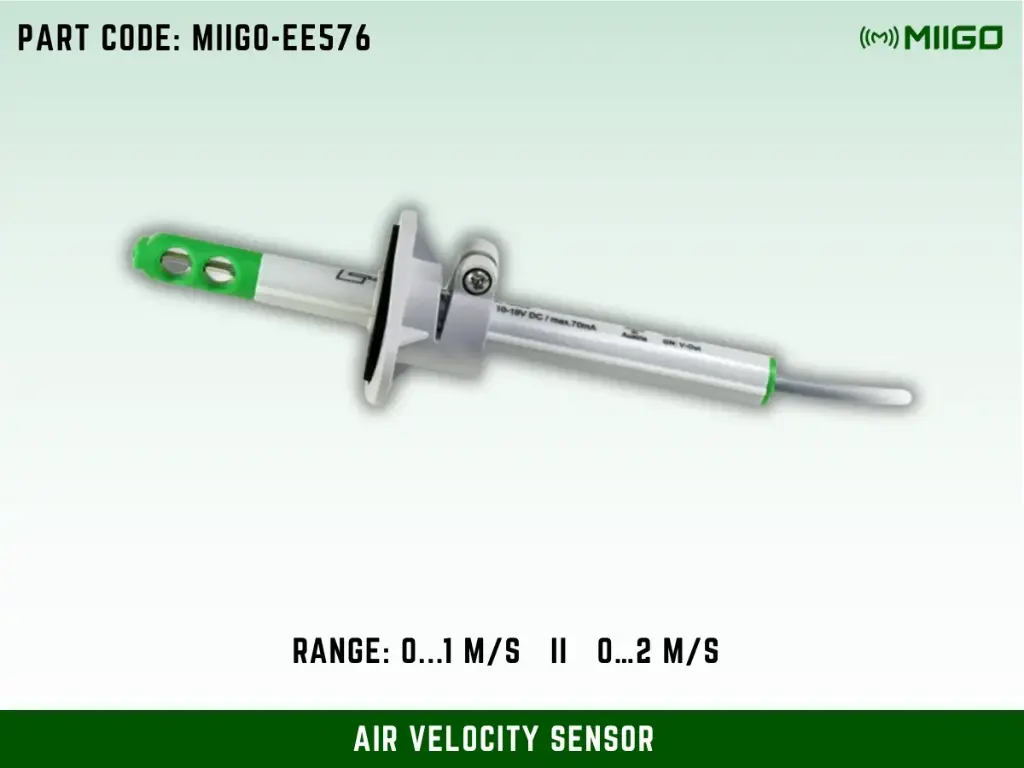

The EE576 Air Velocity Sensor features a newly developed sensor head with a proven hot-film element, ensuring exceptional accuracy, long-term stability, and high resistance to dust and dirt. Factory-calibrated in a special wind tunnel, it delivers precise low-velocity measurements with optimal sensitivity. The sensor includes an alignment strip and mounting flange for easy installation and depth adjustment. The integrated electronics provide a linear analog output (0-5V or 0-10V) for airflow ranges up to 2 m/s (400 ft/min).
TECHNICAL SPECIFICATIONS
MEASUREMENT PARAMETERS
-
Air Velocity Ranges (User Selectable):
-
0...2 m/s (0...400 ft/min)
-
0...1 m/s (0...200 ft/min)
-
Accuracy:
-
0.2...1 m/s: ±(0.05 m/s + 2% of measured value)
-
0.2...2 m/s: ±(0.08 m/s + 4% of measured value)
OUTPUT & CONNECTIVITY
-
Analog Outputs: 0-5V or 0-10V
-
Power Supply: 10-19V DC or 19-29V DC
APPLICATION AREAS
-
HVAC & Ventilation System Monitoring
-
Cleanroom & Laboratory Airflow Control
-
Industrial Low-Velocity Air Measurement
-
Airflow Monitoring in Sensitive Environments
