DESCRIPTION

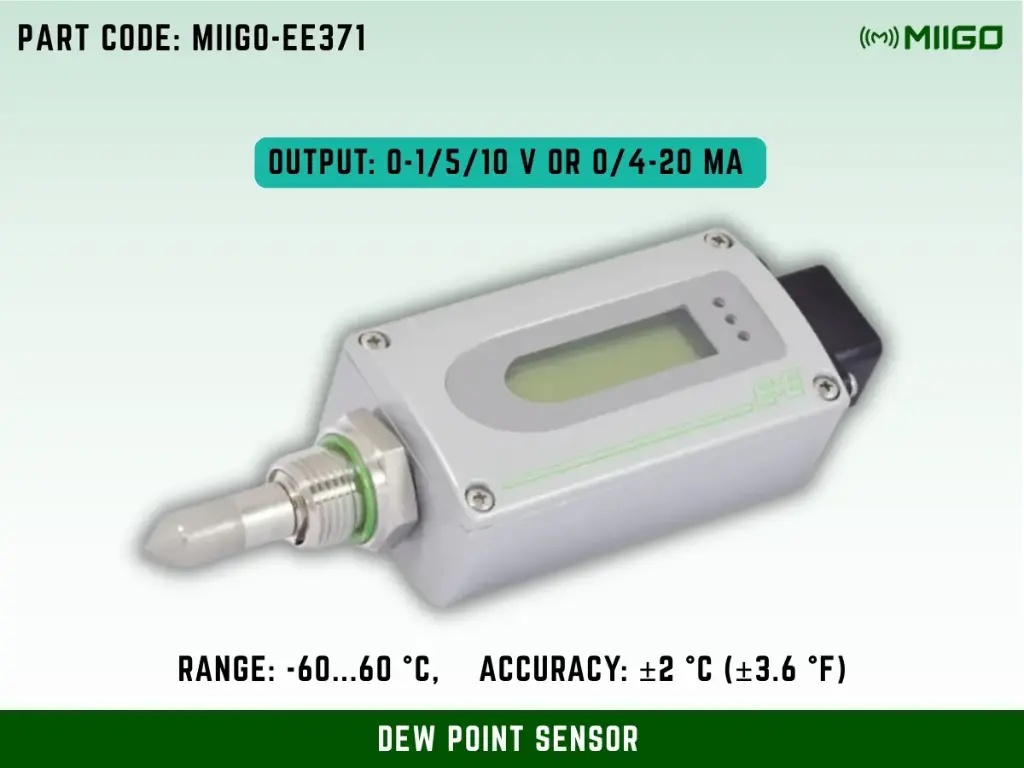

The EE371 Dew Point Sensor ensures high-precision monitoring with ±2 °C Td (±3.6 °F Td) accuracy. Equipped with the E+E HMC01 humidity and temperature sensing element, it delivers long-term stability. The sensor features configurable voltage or current outputs (0-1/5/10 V or 0/4-20 mA) and an optional LCD display for easy monitoring. EE-PCS Product Configuration Software enables quick adjustments for system integration.
TECHNICAL SPECIFICATIONS
MEASUREMENT PARAMETERS
-
Dew Point Measurement Range: -60...60 °C Td (-76...140 °F Td)
-
Accuracy: ±2 °C Td (±3.6 °F Td)
-
Pressure Rating: Up to 100 bar (1450 psi)
OUTPUT & CONNECTIVITY
-
Analog Outputs: 0-1/5/10 V or 0/4-20 mA
-
Configuration: Adjustable via EE-PCS Software & Optional Adapter
-
Power Supply: 15-30 VDC
APPLICATION AREAS
-
Compressed Air & Industrial Gas Monitoring
-
Plastic Dryers & Injection Molding
-
HVAC & Environmental Monitoring
-
Industrial Drying & Process Control
