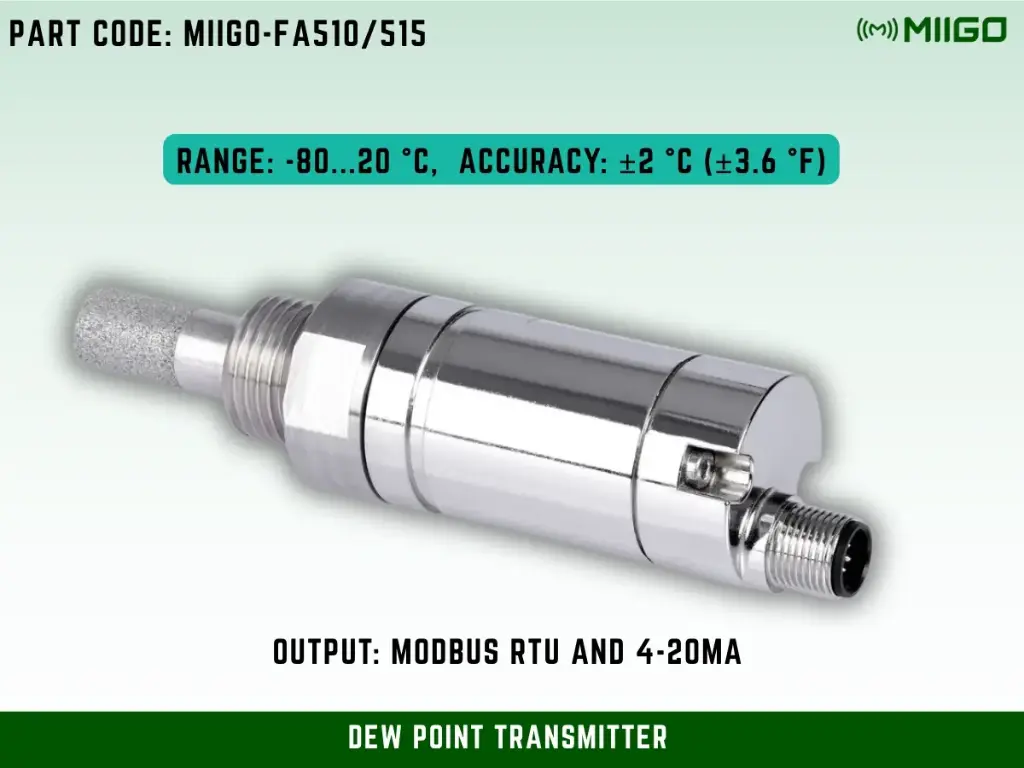

FA 510/515 Dew Point Transmitter

DESCRIPTION:

The FA 510/515 Dew Point Transmitter is a high-precision, industrial-grade sensor designed for continuous dew point measurement in compressed air systems and gas processing environments. Available in both 2-wire and 3-wire versions, it supports 4-20mA analog output and RS485 Modbus digital communication, making it an ideal solution for real-time monitoring and integration with SCADA or PLC systems.

KEY FEATURES & SPECIFICATIONS:

• Accuracy:
  • ±1 °C at 50…-20 °Ctd
  • ±2 °C at -20…-50 °Ctd
  • ±3 °C at -50…-80 °Ctd
• Measurement Range:
  • Wide dew point range: -80°Ctd to +20°Ctd – suitable for all compressed air applications including refrigeration, desiccant dryers, and industrial drying systems.
• Pressure Range:
  • Standard: (-)1 to 50 bar
  • Optional: High-pressure version available up to 350 bar
• Output Signals:
  • 4-20 mA analog output

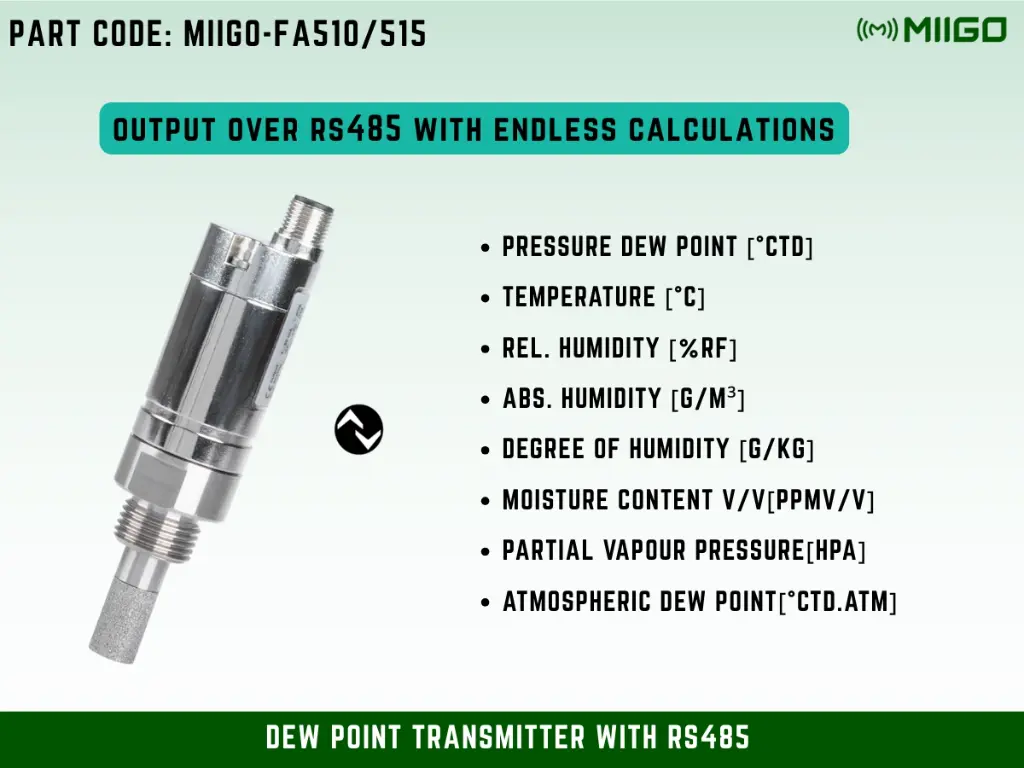

  • RS485 MODBUS digital output – seamless integration with modern monitoring systems
• Power Supply:
  • Operates on 24 VDC (Range: 10–36 VDC) for flexible system compatibility

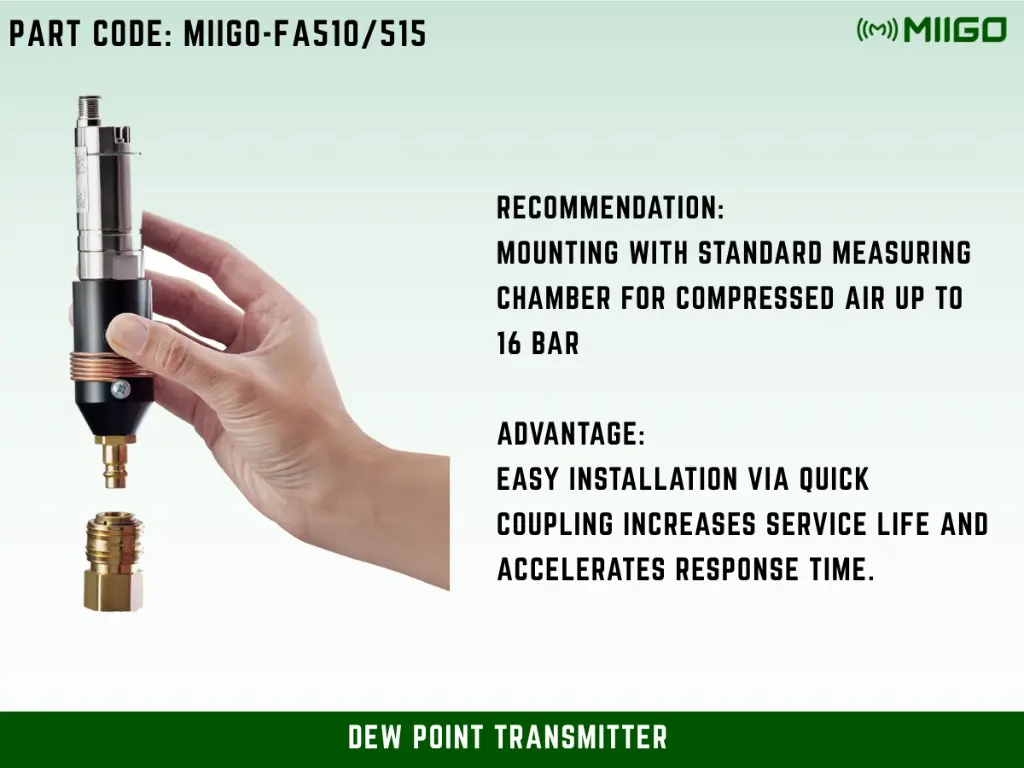

• Installation Interface:
  • Screw-in thread: G 1/2" – universal fitting for quick and secure installation
• Durability & Protection:
  • IP65 protection class – water and dust-resistant design for harsh environments

APPLICATION AREAS:

• Compressed air dryers
• Industrial gas systems
• Pharmaceutical & food processing plants
• Refrigeration systems
